| Model |

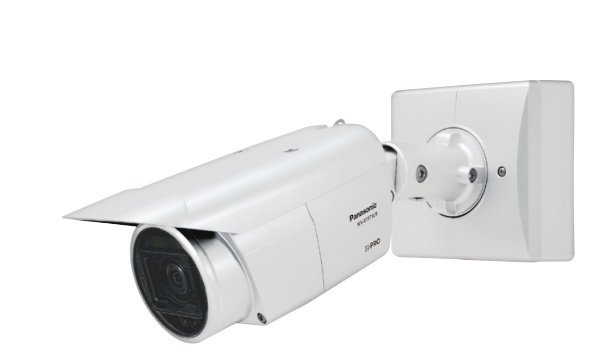

WV-X1571LN |
| Camera |
| Image Sensor |
1/1.8 type CMOS image sensor |
| Minimum Illumination |
- Color: 0.09 lx, BW: 0.05 lx
(F1.5, Maximum shutter: Off (1/30s), AGC: 11)
- BW: 0 lx
(F1.5, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)
- Color: 0.006 lx, BW: 0.003 lx
(F1.5, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance |
ATW1/ATW2/AWC |
| Shutter Speed |
[30fps mode] 1/30 Fix to 1/10000
Fix [25fps mode] 1/25 Fix to 1/10000 Fix |
| AI Intelligent Auto |
On/Off |
| Super Dynamic |
On/Off, The level can be set in the range of 0 to 31 |
| Dynamic Range |
Max.132 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch |
The level can be set in the range of 0 to 255. |
| Back light compensation/High light compensation |
BLC (Back light compensation)/HLC (High light compensation)/Off
The level can be set in the range of 0 to 31.
(only when Super dynamic/AI Intelligent Auto: Off) |
| Fog compensation |
On/Off, The level can be set in the range of 0 to 8
(only when AI Intelligent auto/auto contrast adjust: Off) |
| Maximum gain |
The level can be set in the range of 0 to 11 |
| Color/BW (ICR) |
Off /On (IR Light Off)/On (IR Light On)/Auto1(IR Light Off)/Auto2 (IR Light On)/Auto3 (SCC) |
| IR LED Light |
High/Middle/Low/Off, Maximum irradiation distance: 40 m {Approx. 131 ft} |
| Digital Noise Reduction |
The level can be set in the range of 0 to 255 |
| Video Motion Detection (VMD) |
On/Off, 4 areas available |
| Scene Change Detection (SCD) |
On/Off, 1 area available |
| Privacy Zone |
On/Off, Up to 8 zones available |
| Image rotation |
0° (Off)/ 90°/180° (Upside-down)/ 270° |
| Camera Title (OSD) |
On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Lens |
| Optical zoom |
2.0x (Motorized zoom / Motorized focus) |
| Extra optical zoom |
6.0x (when resolution is 1280x720) |
| Digital (electronic) zoom |
Choose from 3 levels of x1, x2, x4 |
| Focal length |
4.3 mm – 8.6 mm {5/32 inches – 11/32 inches} |
| Maximum Aperture Ratio |
1 : 1.5 (WIDE) – 1 : 2.4(TELE) |
| Focus range |
1 m {39-3/8 inches} – ∞ |
| Angular Field of View |
[16 : 9 mode ] *[4:3 mode] is not supported.
Horizontal : 53° (TELE) – 104° (WIDE), Vertical : 30° (TELE) – 56° (WIDE) |
| DORI |
| Detect (25ppm / 8ft) |
Wide: 60.00 m / 196.86 ft, Tele: 154.04 m / 505.37 ft |
| Observe (62.5ppm / 19ft) |
Wide: 24.00 m / 78.74 ft, Tele: 61.61 m / 202.15 ft |
| Recognize (125ppm / 38ft) |
Wide: 12.00 m / 39.37 ft, Tele: 30.81 m / 101.07 ft |
| Identify (250ppm / 76ft) |
Wide: 6.00 m / 19.69 ft, Tele: 15.40 m / 50.54 ft |
| Adjusting Angle |
| Ceiling mounting |
Horizontal : ±180° (Adjust by horizontal (PAN) angle)
Vertical : 0° to 100° (Adjust by vertical (TILT) angle)
Yaw : –190° to +100° (Adjust by azimuth (YAW) angle) |
| Wall mounting |
Horizontal: ±100° (Adjust by vertical (TILT) angle)*
Vertical: ±100° (Adjust by vertical (TILT) angle)*
Yaw: –190° to +100° (Adjust by azimuth (YAW) angle)
*You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle. |
| Browser GUI |
| Camera Control |
Brightness, AUX On / Off |
| Audio |
- Mic (Line) Input: On / Off
Volume adjustment: Low / Middle / High
- Audio Output: On / Off
Volume adjustment: Low / Middle / High |
| GUI / Setup Menu Language |
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network |
| Network IF |
10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/JPEG (MJPEG) |
[16 : 9 mode ] *[4:3 mode] is not supported.
3840×2160, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180 |
| H.265/H.264 |
Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort |
| Transmission Type: Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
| JPEG |
Image Quality: 10 steps |
| Smart Coding |
Smart Facial Coding : On (Smart Facial Coding*) / On (Auto VIQS) / Off
*Smart Facial Coding is only available with Stream |
GOP (Group of pictures) control:
On (Frame rate control)*/ On (Advanced)*/ On (Mid)/ On (Low)/ Off
*On (Frame rate control) and On (Advanced) are only available with H.265 |
| Audio Compression |
G.726 (ADPCM): 16 kbps/32 kbps , G.711: 64 kbps
AAC-LC: 64 kbps/96 kbps/128 kbps |
| Audio transmission mode |
Off / Mic (Line) input/ Audio output/ Interactive (Half duplex)/
Interactive (Full duplex) |
| Supported Protocol |
- IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users |
Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card |
- H.265/H.264 recording :
Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- JPEG recording :
Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure
- Compatible SDXC/SDHC/SD Memory Card :
Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility |
iPad, iPhone, AndroidTM terminals |
| ONVIF Profile |
G / S / T |
| Alarm |
| Alarm Source |
3 terminals input, VMD alarm, SCD alarm, Command alarm |
| Alarm Actions |
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Input/Output |
| Monitor Output (for adjustment) |
VBS: 1.0 V [p-p]/75 Ω, composite, Pin jack
An NTSC or PAL signal can be outputted from camera |
| Audio input |
ø3.5 mm stereo mini jack |
For microphone input:
- Recommended applicable microphone: Plug-in power type
(Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
- Input impedance: Approx. 2 kΩ (unbalanced)
- Supply voltage: 2.5 V ±0.5 V |
For line input
Input level: Approx. –10 dBV |
| Audio Output |
ø3.5 mm stereo mini jack (Audio output is monaural.)
Output impedance: Approx. 600 Ω (unbalanced)
Output level: –20 dBV |
| External I/O Terminals |
ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| General |
| Safety |
UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC |
FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption |
DC power supply: DC 12 V 930 mA/Approx. 11.2 W
PoE (IEEE802.3af compliant) Device: DC48 V 240 mA/Approx. 11.5W (Class 0 device) |
| Ambient Operating Temperature |
-40 °C to +60 °C (-40 °F to +140 °F)*9
(Power On range : –30 °C to +60 °C {–22 °F to +140 °F}) |
| Ambient Operating Humidity |
10 to 100 % (no condensation) |
| Dehumidification Device |
Rosahl element |
| Water and Dust Resistance |
IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance |
IK10 (IEC 62262) |
| Wind Resistance |
Up to 40 m/s {approx. 89 mph} |
| Dimensions |
With adapter box: 133 mm (W) x 133 mm (H) x 377 mm (L)
{5-1/4 inches(W) x 5-1/4 inches(H) x 14-27/32 inches(L)}
Without adapter box: 130 mm (W) x 130 mm (H) x 337 mm (L)
{5-1/8 inches(W) x 5-1/8 inches(H) x 13-9/32 inches(L)} |
| Mass |
With adapter box : 2.2 kg {4.85 lbs}
Without adapter box : 1.7 kg {3.75 lbs} |
| Finish |
Main body: Aluminum die cast and resin, i-PRO white
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Front panel: Polycarbonate resin (with ClearSight coating), Clear |
