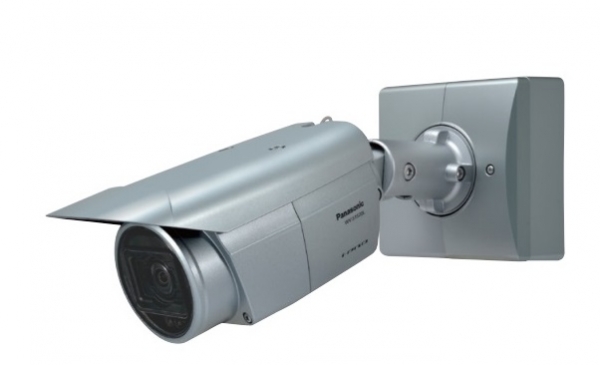

Camera IP hồng ngoại 2.0 Megapixel PANASONIC WV-SPW532L

- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.

- Độ phân giải camera ip: 2.0 Megapixel.

- Tốc độ khung hình: 30 fps.

- Độ nhạy sáng tối thiểu: Color: 0.07 lx, BW: 0.01 lx; B/W: 0.0 lux (with IR LED on).

- Chuẩn nén hình ảnh: H.264/ JPEG.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Nguồn điện: PoE (IEEE802.3af compliant): DC48V/ 190mA/ Approx. 9.12 W (Class 0 device).

Đặc tính kỹ thuật

Model	WV-SPW532L
Camera
Image Sensor	Approx. 1/3 type MOS image sensor
Scanning Mode	Progressive scan
Scanning Area	5.35 mm (H) x 3.34 mm(V) {7/32 inches (H) x 1/8 inches (V)}
Minimum Illumination	- Color: 0.07 lx, BW: 0.01 lx (F1.6, Maximum shutter: Max. 1/30s, Gain: On(High)) - BW: 0 lx (F1.6, Maximum shutter: Off(1/30 s), Gain: High, when the IR LED is lit) - Color: 0.005 lx, BW: 0.0007 lx (F1.6, Maximum shutter: Max. 16/30s, Gain: On(High))
IR LED Light	Off/ Auto (High/ Mid/ Low)
IR LED irradiation distance	Approx. 30 m {98.43 feet}
White Balance	AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Light Control Mode	Outdoor scene/ Indoor scene (50 Hz)/ Indoor scene (60 Hz)/ Fix shutter
Shutter Speed	OFF(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Wide Dynamic Range	On/ Off
Face wide dynamic range	On/ Off (only when Wide Dynamic Range: On)
Adaptive Black Stretch	On/ Off (only when Wide Dynamic Range: Off)
Fog compensation	On/ Off (only when Wide Dynamic Range/ Adaptive black stretch: Off)
High light compensation(HLC)	On/ Off (only when Wide Dynamic Range/ Adaptive black stretch: Off)
AGC	On (Low)/ On (Mid), On (High)/ Off
Maximum shutter	max. 1/1000s, max. 1/500s, max. 1/250s, max. 1/100s, max. 1/60s, max. 2/100s, max. 2/120s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s
Day/Night (ICR)	Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC)
Digital Noise Reduction	High/ Low
Video Motion Detection	4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Privacy Zone	Up to 8 zones
VIQS	Up to 8 zones
Camera Title (OSD)	Up to 20 characters (alphanumeric characters, marks)
Focus Adjustment	ABF/ MANUAL (Html only)
Lens Distortion Compensation	256 steps
Lens
Vari Focal Length	2.8 mm – 10 mm {1/8 inches – 13/32 inches}
Angular Field of View	- [16 : 9 mode] Horizontal : 31 ° (TELE) - 112 ° (WIDE) Vertical : 17 ° (TELE) - 60 ° (WIDE) - [4 : 3 mode] Horizontal : 26 ° (TELE) - 91 ° (WIDE) Vertical : 19 ° (TELE) - 67 ° (WIDE)
Maximum Aperture Ratio	1 : 1.6 (WIDE) - 1 : 3.4 (TELE)
Focusing Range	0.3 m - ∞
Adjusting Angle (Camera mount bracket)
Ceiling mounting	- Horizontal: ±180° (PAN rotation part) - Vertical: 0° to 90° (TILT rotation part) - Yaw: -190° to +100° (YAW rotation part)
Wall mounting	- Horizontal: ±90° (TILT rotation part)* - Vertical: ±90° (TILT rotation part)* - Yaw: -190° to +100° (YAW rotation part)
Browser GUI
Cropping	Off/ JPEG(1)/ JPEG(2)/ JPEG(3)/ H.264(1)/ H.264(2)/ H.264(3)/ H.264(4)/ H.264(all) Alarm action On/ Off
Camera Control	Brightness, AUX On/ Off
Display Mode	Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available
Digital Zoom	1x, 2x, 4x controlled by browser GUI
Camera Title	Up to 20 alphanumeric characters
Clock Display	Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Alarm Control	Reset
One Shot Capture	A still picture will be displayed on a newly opened window.
SD Memory Data Download	Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
GUI/ Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
System Log	Up to 100 (Internal) Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs
Supported OS	Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7,Microsoft® Windows Vista®
Supported Browser	Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit), Safari, Google Chrome, Mozilla Firefox
Network
Network IF	10Base-T/ 100Base-TX, RJ45 connector
Image Resolution	- 2 Megapixel [16 : 9](30 fps mode) H.264(1), H.264(2) 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 H.264(3), H.264(4) 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 - 2 Megapixel [4 : 3](30 fps mode) H.264(1), H.264(2) 1,600 x 1,200/ 1,280 x 960/ 800 x 600/ VGA/ 400 x 300 QVGA/ 160 x 120 H.264(3), H.264(4) 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 - 3 Megapixel [4 : 3](30 fps mode) * Used by super resolution technology H.264(1), H.264(2) 2,048 x 1,536/ 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 H.264(3), H.264(4) 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120
H.264	- Transmission Mode: Constant bit rate/ Variable bit rate/ Framerate priority/ Best effort/ Advanced VBR - Frame Rate: 1/ 3/ 5/ 7.5/ 10/ 12/ 15/ 20/ 30 fps - Image Quality (Constant bit rate/Best effort): Low (Motion priority)/ Normal/ Fine(Image quality priority) - Smart Coding mode: On (Low/ Mid/ High)/ Off (Only when 'Variable bit rate' is selected) - Refresh interva: 0.2/ 0.25/ 0.33/ 0.5/ 1/ 2/ 3/ 4/ 5s
Transmission Type	Unicast/ Multicast
JPEG	- Image Quality: 10 steps - Refresh interval: 0.1 fps - 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264 images.) - Transmission Type: Pull/ Push
Total Bit Rate	64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited
Supported Protocol	- IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP - IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
FTP Client	Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.)
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option	- H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure Compatible (JPEG only) - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure Compatible SD (SDHC/SDXC) card: Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB model SDHC card, * SDXC card (except miniSD card and microSD card)
Cellular Phone Compatibility	JPEG image, AUX control (by access level)
Mobile Terminal Compatibility	iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android mobile terminal
Alarm
Alarm Source	VMD, Command alarm
Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notication Indication on browser, FTP image transfer, Panasonic protocol output
Alarm Log	With SDXC/SDHC/SD memory card: Up to 50,000 logs for each SD memory card
Schedule	Alarm/ VMD/ Access permission/ H.264 recording/ Scene file
Input/Output
Monitor Output (for adjustment)	- VBS: 1.0 V [p-p]/75 Ω, composite, RCA jack An NTSC or PAL signal can be outputted from camera (either press the INITIAL SET switch quickly (within 1 second) or use software to select either NTSC or PAL signal).
General
Safety	UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
EMS	FCC (Part15 ClassA), ICES003 ClassA, EN55022 ClassB, EN55024
Power Source and Power Consumption	When IR LED is On PoE (IEEE802.3af compliant): DC 48V/ 190mA/ Approx. 9.12W (Class 0 device)
Ambient Operating Temperature	-30 °C to +50 °C (–22 °F to 122 °F)
Ambient Operating Humidity	10 to 90 % (no condensation)
Water and Dust Resistance	IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant
Dimensions * Installing using the base bracke	95 mm (W) x 99 mm (H) x 326 mm (L) {3-3/4 inches (W) x 3-57/64 inches (H) x 1ft 27/32 inches (L)}
Mass (approx.)	Approx. 1.4 kg {3.1 lbs}
Finish	Main body: Aluminum die cast, light gray Front cover section clear part: Clear polycarbonate resin
