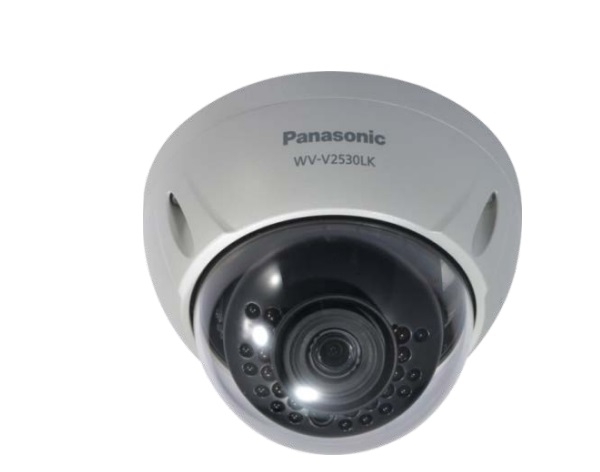

Camera IP Dome hồng ngoại 2.0 Megapixel PANASONIC WV-V2530L1

Trạng thái:

Còn hàng

Số lần xem:

64977

Giá bán:

9,601,000 đ

Giá gốc:

Chia sẻ:

Thông tin sản phẩm

Camera IP Dome hồng ngoại 2.0 Megapixel PANASONIC WV-V2530L1

- Cảm biến hình ảnh: Approx. 1/2.8 type CMOS image sensor.

- Độ phân giải camera quan sát: 2.0 Megapixel (25/30fps@1080P (1920 ×1080)).

- Chuẩn nén hình: H.265/ H.264/ MJPEG.

- Tiêu cự: 2.7 mm - 12 mm.

- Góc quan sát: H: 37° to 99°/V: 21° to 52°.

- Tầm quan sát hồng ngoại: Tối đa 30 mét.

- Hỗ trợ thẻ nhớ Micro SD, tối đa 128GB.

- Hỗ trợ chức năng Day/ Night (ICR).

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Nguồn điện: 12VDC 12W/ PoE (IEEE802.3af) 8.6W.

Đặc tính kỹ thuật

Model	WV-V2530L1
Camera
Image Sensor	Approx. 1/2.8 type CMOS image sensor
Min Illumination	0.2 lx/ F1.4 (color), 0 lx/ F1.4(IR on)
Gain	Auto/ Manual
Back light compensation	OFF/ BLC/ HLC/ WDR
Shutter speed	Auto/ Manual, 1/3 sec~1/100000 sec
Day/ Night	Auto(ICR)/ Color/ Black & White
IR LED Light	Irradiation distance: 30 m {Approx. 98 ft}
White Balance	Auto/ Natural/ Street Lamp/ Outdoor/Manual
Digital Noise Reduction	3DNR ON/ OFF
Privacy masking	Up to 4 areas
Video Motion Detection	On/ Off (4 Zones, Rectangle)
Tampering Detection	On/Off
Lens
Zoom ratio	4.4x Optical (Motorized zoom/ Motorized focus)
Focal Length	2.7 mm to 12 mm
Angular Field of View	H: 37°(TELE) to 99° (WIDE) V: 21°(TELE) to 52°(WIDE)
Network
Network	10BASE-T/ 100BASE-TX, RJ45 connector
Resolution	1080P(1920x1080)/ 1.3 M (1280x960)/ 720P (1280x720)/ 640x480/ 640x360/ 320×240
Image compression method	H.265/ H.264/ MJPEG
Frame Rate	1 to 25/30 fps
Protocol	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/ IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, DDNS, FTP, QoS, 802.1x
Maximum concurrent access number	20 users (Number of sessions that can connect to cameras at the same time)
Compatible micro SDXC/ SDHC memory card	4 to 128 GB
General
Power source	12 VDC, PoE (IEEE802.3af compliant)
Power Consumption	12 VDC: 1A/ Approx. 12W PoE 48 VDC: 180 mA/ Approx. 8.6 W (Class 0 device)
Ambient Operating Temperature/ Humidity	-30 °C to +60 °C {-22 °F to 140 °F} 10 % to 90 % (no condensation)
Water and Dust Resistance	Main body: IP66
Vandal Resistant	Compliant with IK10 (IEC62262)
Dimensions	Φ122 mm × 89 mm (H) {ø4-13/16 inches × 3-1/2 inches (H)}
Weight (approx.)	Approx. 460 g {1.01 lbs}
