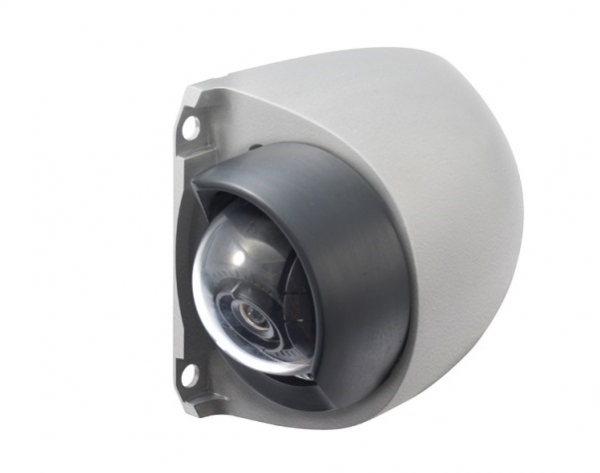

Camera IP 2.0 Megapixel PANASONIC WV-SBV131M

Trạng thái:

Còn hàng

Số lần xem:

8060

Giá bán:

23,586,000 đ

Giá gốc:

Chia sẻ:

Thông tin sản phẩm

Camera IP 2.0 Megapixel PANASONIC WV-SBV131M

- Cảm biến hình ảnh: 1/3 type MOS image sensor.

- Độ phân giải camera ip: 2.0 Megapixel.

- Tốc độ khung hình: 30 fps.

- Ống kính: 1.95 mm.

- Độ nhạy sáng tối thiểu: Color: 0.1 lx, BW: 0.06 lx.

- Chuẩn nén hình ảnh: H.264/ JPEG.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuấn chống va đập: IK10.

- Nguồn điện: PoE (IEEE802.3af compliant)/ PoE (Alternative A): 48 VDC: 80 mA/ Approx.3.8 W (Class 2 device).

Đặc tính kỹ thuật

Model	WV-SBV131M
Camera
Image Sensor	1/3 type MOS image sensor
Scanning Mode	Progressive
Scanning Area	5.28 mm (H) x 3.30 mm (V) {7/32 inches (H) x 1/8 inches (V)}
Minimum Illumination	- Color: 0.1 lx (F2.2, Maximum shutter: Off (1/30s), AGC: High) 0.007 lx (F2.2, Maximum shutter: Max. 16/30s, AGC: High) - BW: 0.06 lx (F2.2, Maximum shutter: Off (1/30s), AGC: High) 0.004 lx (F2.2, Maximum shutter: Max. 16/30s, AGC: High)
White Balance	AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Light Control Mode	ELC/ Indoor scene 50Hz/ Indoor scene 60Hz
Wide dynamic range	On/ Off
Adaptive Black Stretch	On/ Off (only when Wide dynamic range: Off)
Fog compensation	On/ Off (only when Wide dynamic range: Off)
High light compensation (HLC)	On/ Off (only when Wide dynamic range/ Back light compensation (BLC): Off)
AGC	On (High)/ On (Mid)/ On (Low)/ Off
Maximum shutter	max. 1/10,000s, max. 1/4,000s, max. 1/2,000s, max. 1/1,000s, max. 1/500s, max. 1/250s, max. 1/120s, max. 1/100s, max. 2/120s, max. 2/100s, max. 3/120s, max. 3/100s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s
Day/Night (Electrical)	Off / Auto
Digital Noise Reduction	High/ Low
Video Motion Detection	On/ Off, 4 areas available
Privacy Zone	On/ Off (up to 8 zones available)
VIQS	On/ Off (Max. 8 locations)
Camera Title (OSD)	Up to 20 characters (alphanumeric characters, marks), On/ Off
Focus Adjustment	MANUAL
Lens
Focal Length	1.95 mm {1/16 inches}
Digital (electronic) zoom	Choose from 3 levels of x1, x2, x4
Zoom ratio	x1 Extra zoom x3 (16 : 9 mode) / x2.5 (4 : 3 mode)
Angular Field of View	[16 : 9 mode] Horizontal: 109° Vertical: 73° [4 : 3 mode] Horizontal: 97° Vertical: 79°
F Numbe	F2.2
Focus Distance	0.5 m - ∞
Adjusting Angle
Adjusting Angle	Horizontal: ±170°, Vertical: ±90° Image tilt adjustment range: -170° (Left) to +170° (Right)
Browser GUI
Camera Control	Brightness
Display Mode	Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available.
Camera Title	Up to 20 alphanumeric characters
Clock Display	Time: 12H/24H Date: 5 formats on the browser Summer time (Manual)
One Shot Capture	A still picture will be displayed on a newly opened window
SD Memory Data Download	Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
GUI/Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Chinese, Russian, Japanese
System Log	Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs
Supported OS	Microsoft® Windows® 10, Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7
Supported Browser	Windows® Internet Explorer® 11 (32 bit) Windows® Internet Explorer® 10 (32 bit) Windows® Internet Explorer® 9 (32 bit) Windows® Internet Explorer® 8 (32 bit)
Network
Network IF	10Base-T/ 100Base-TX, M12 connector (female)
Image Resolution	- 2 Megapixel [16 : 9] H.264 (1)(2)/ JPEG (1)(2)(3) 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 H.264 (3)(4) 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 - 2 Megapixel [4 : 3] H.264 (1)(2)/ JPEG (1)(2)(3) 1,600 x 1,200/ 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 H.264 (3)(4) 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 - 3 Megapixel [4 : 3] * Used by super resolution techniques H.264 (1)(2)/ JPEG (1)(2)(3) 2,048 x 1,536/ 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 H.264 (3)(4) 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120
H.264	- Transmission Mode: Constant bit rate/ Variable bit rate/ Framerate priority/ Best effort/ Advanced VBR - Frame Rate: 1/ 3/ 5/ 7.5/ 10/ 12/ 15/ 20/ 30 fps - Bit Rate/Client: 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 1,536/ 2,048/ 3,072/ 4,096/ 6144/ 8,192/ 10,240/ 12,288/ 14,336/ 16,384/ 20,480/ 24,576/ 30,720/ 40,960 kbps * The available range of the H.264 bit rate varies depending on the setting selected for “image capture size” - Image Quality: Low/ Normal/ Fine 0 SUPER FINE/1 FINE /2 / 3 / 4 / 5 NORMAL / 6 / 7 / 8 / 9LOW - Smart Coding mode: On (Low / Mid / High) / Off (Only when 'Variable bit rate' is selected) - Transmission Type: Unicast/ Multicast
JPEG	- Image Quality: 10 steps - Refresh Interval: 0.1 fps - 30 fps - Transmission Type: Pull / Push
Total Bit Rate	64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited
Supported Protocol	- IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP,ARP
FTP Client	Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.)
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card(Option)	Manufactured by Panasonic (except miniSD card and microSD card) SDXC memory card: 64 GB, 128 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB SD memory card: 256 MB, 512 MB, 1 GB, 2 GB
Cellular Phone Compatibility	JPEG image
Mobile Terminal Compatibility	iPad, iPhone, iPod touch(iOS 4.2.1 or later), Android mobile terminals
Alarm
Alarm Source	VMD, Command alarm
Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
Alarm Log	With SDXC/SDHC/SD memory card: 5,000 logs, without SDXC/SDHC/SD memory card: 1,000 logs
Schedule	VMD
General
Safety/EMC Standard	UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 FCC Part15 ClassA, ICES003 ClassA, EN55022 ClassB, EN55024
Power Source and Power Consumption	PoE (IEEE802.3af compliant)/ PoE (Alternative A): 48 VDC: 80 mA/ Approx.3.8 W (Class 2 device)
Ambient Operating Temperature	-40 °C to +60 °C {-40 °F to 140 °F} (Power On range: -30 °C to +60 °C {-22 °F to 140 °F})
Ambient Operating Humidity	10 % to 90 % (no condensation)
Impact Protection	Compliant with IK10 (IEC 62262)
Water and Dust Resistance	IP66 (IEC60529), IP6K9K, Type 4X (UL50), NEMA 4X compliant
Railway Application	EN50155-T3, EN50121, ECE-R10, EN45545, EN50498
Dimensions	100 mm {3-15/16 inches} (W), 80 mm {3-5/32 inches} (H), 161 mm {6-11/32 inches} (D)
Mass (approx.)	Approx. 750 g {1.65 lbs}
Finish	Main body: Aluminum die cast, Light gray Dome cover: Polycarbonate resin, Clear (with hard coating)
Others	Tamper-resistant dome cover
