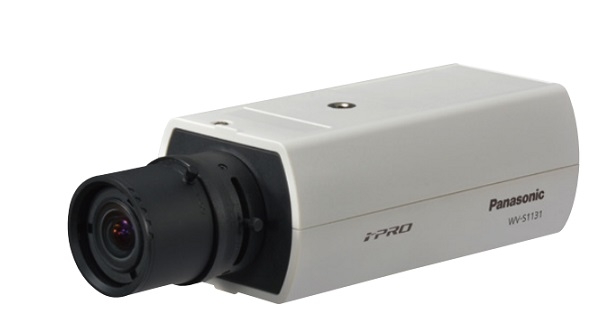

Camera IP 2.0 Megapixel PANASONIC WV-S1131PJ

Trạng thái:

Còn hàng

Số lần xem:

65856

Chia sẻ:

Thông tin sản phẩm

Camera IP 2.0 Megapixel PANASONIC WV-S1131PJ

- PANASONIC WV-S1131PJ là dòng camera IP 2.0 Megapixel hỗ trợ tính năng iA (intelligent Auto).

- Cảm biến hình ảnh: Approx. 1/2.8 type MOS image sensor.

- Độ phân giải: 2.0 Megapixel.

- Độ nhạy sáng tối thiểu: Color: 0.01lx, BW: 0.004lx.

- Chống ngược sáng thực WDR 144dB.

- Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG (MJPEG).

- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 256GB.

- Hỗ trợ kết nối ONVIF G/S/T.

Đặc tính kỹ thuật

Model	WV-S1131PJ
Camera
Image Sensor	Approx. 1/2.8 type MOS image sensor
Minimum Illumination	- Color: 0.01 lx, BW: 0.004 lx (F1.4, Maximum shutter: Off (1/30s), AGC: 11) - Color: 0.0007 lx, BW: 0.0003 lx (F1.4, Maximum shutter: max. 16/30s, AGC: 11)
White Balance	AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Shutter Speed	1/30 Fix to 1/10000 Fix 1/30 Fix to 2/120 Fix is available during 30 fps mode only. 1/60 Fix is available during 60 fps mode only.
Intelligent Auto	On/ Off
Super Dynamic	On/ Off, the level can be set in the range of 0 to 31.
Dynamic Range	144 dB (Super Dynamic: On)
Adaptive Black Stretch	The level can be set in the range of 0 to 255.
Back light compensation/ High light compensation	BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off)
Fog compensation	On/ Off (only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain (AGC)	The level can be set in the range of 0 to 11.
Color/BW (ICR)	Off/ On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC)
Digital Noise Reduction	The level can be set in the range of 0 to 255
Video Motion Detection (VMD)	On / Off, 4 areas available
Intelligent VMD (i-VMD)	Type 4 *Bundled License
Stabilizer	On/ Off (available only in the 30 fps mode)
Privacy Zone	On/ Off (up to 8 zones available)
Image rotation	0°/ 90°/ 180°/ 270°
Camera Title (OSD)	On/ Off Up to 20 characters (alphanumeric characters, marks)
Focus Adjustment	Auto back focus/ Manual
Browser GUI
Camera Control	Brightness, AUX On/ Off
Audio	Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On / Off Volume adjustment: Low/ Middle/ High
GUI/ Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
Network IF	10Base-T/ 100Base-TX, RJ45 connector
Resolution H.265/ H.264 JPEG (MJPEG)	- 2 Megapixel [16 : 9] (30/60 fps) 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180 - 3 Megapixel [4 : 3] (30 fps) 2,048 x 1,536/ 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240
Smart Coding	- Smart Facial Coding: On (Smart Facial Coding)/ On (Auto VIQS)/ Off Smart Facial Coding is only available with Stream(1). - GOP (Group of pictures): On (Advanced)/ On (Mid)/ On (Low)/ Off On(Advanced) is only available with H.265
Audio Compression	G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps
Audio transmission mode	Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex)
Supported Protocol	- IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)	- H.265 / H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure JPEG recording : Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure - Compatible SDXC/SDHC/SD Memory Card : Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB*model SDHC card, ** SDXC card (except miniSD card and microSD card
Mobile Terminal Compatibility	iPad, iPhone, AndroidTM mobile terminals
Alarm
Alarm Source	3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/ Output
Monitor Output (for adjustment)	VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera
Audio input	ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V
Audio Output	ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced)
External I/O Terminals	ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
General
Safety	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption	DC power supply: DC12 V 460 mA, Approx. 5.6 W PoE (IEEE802.3af compliant) Device: DC48 V 120 mA, Approx. 5.8 W (Class 2 device)
Ambient Operating Temperature	-10 °C to +50 °C (14 °F to 122 °F)
Ambient Operating Humidity	10 to 90 % (no condensation)
Dimensions	75 mm (W) x 57 mm (H) x 146 mm (D) {2-15/16 inches (W) x 2-1/4 inches (H) x 5-3/4 inches (D)} (excluding lens / power cord plug)
Mass (approx.)	350 g { 0.77 ibs.}
Finish	Main body: PC/ ABS resin (Sail white)
