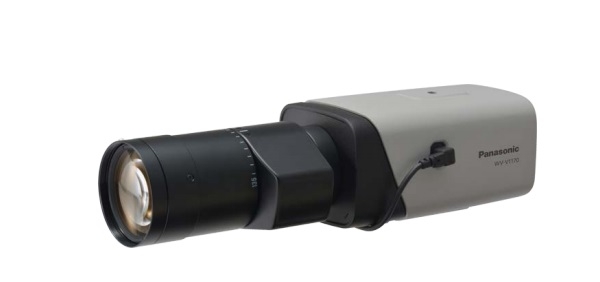

Camera IP 12.0 Megapixel PANASONIC WV-V1170

Trạng thái:

Còn hàng

Số lần xem:

7977

Chia sẻ:

Thông tin sản phẩm

Camera IP 12.0 Megapixel PANASONIC WV-V1170

- Cảm biến hình ảnh: Approx. 1/1.7 type CMOS image sensor.

- Độ phân giải camera ip: 12.0 Megapixel.

- Tốc độ khung hình: 30 fps.

- Độ nhạy sáng tối thiểu: 0.2 lx/ F1.4 (color), 0.002 lx F1.4 (B/W).

- Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.

- Nhiệt độ hoạt động: -30°C to 50°C.

- Nguồn điện: 12VDC/ 24VAC và PoE.

Đặc tính kỹ thuật

Model	WV-V1170
Camera
Image Sensor	Approx. 1/1.7 type CMOS image sensor
Minimum Illumination	0.2 lx / F1.4 (color), 0.002 lx F1.4 (B/W)
Gain	Auto/ Manual
Back light compensation	OFF/ BLC/ HLC/ WDR
Shutter speed	Auto/ Manual, 1/3 sec~1/100000 sec
Day/ Night	Auto(ICR)/ Color/ Black & White
White Balance	Auto/ Natural/ Street Lam/ Outdoor/ Manual
Digital Noise Reduction	3DNR ON/ OFF
Privacy masking	Up to 4 areas
Video Motion Detection	On/ Off (4 Zones, Rectangle)
Lens (Optional)
Mount Type	C/CS-mount
Network
Network	10BASE-T/ 100BASE-TX, RJ45 connector
Resolution	12M (4000×3000)/ 8M (3840×2160)/ 5M (2560×1920)/ 3M (2048×1536)/ 1080P (1920×1080)/ 1.3M (1280×960)/ 720P (1280×720)/ VGA (640x480)/ 640x360/ 320x240
Image compression method	H.265/ H.264/ MJPEG
Frame Rate	12M: 1~20 fps, Others: 1~25/30 fps
Protocol	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/ IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, DDNS, FTP, QoS, 802.1x, Multicast
Maximum concurrent access number	20 users (Number of sessions that can connect to cameras at the same time)
Compatible memory card	micro SDXC/SDHC memory card 4 to 128 GB
I/O Port	Alarm Input 2 channel/ Output 1 channel, RS485 1 port, RS232 serial port 1 port
Audio Interface	Audio IN 1 channel/ Audio OUT 1 channel, 1 Built-in microphone
General
Power source	12 VDC, 24V AC, PoE (IEEE802.3af compliant)
Power Consumption	12 V DC/24V AC: 800mA(50/60Hz) 12V DC:1A PoE 48 V DC: 200mA (Class 0 device)
Ambient Operating Temperature/ Humidity	-30 °C to +50 °C {-22 °F to 122 °F} 10 % to 90 % (no condensation)
Dimensions	74 mm(W) × 135 mm(H) × 65 mm (D) {2-29/32 (W) × 5-5/16 (H) x 2-19/32 (D) inches}
Weight (approx.)	Approx. 540 g {1.19 lbs}
