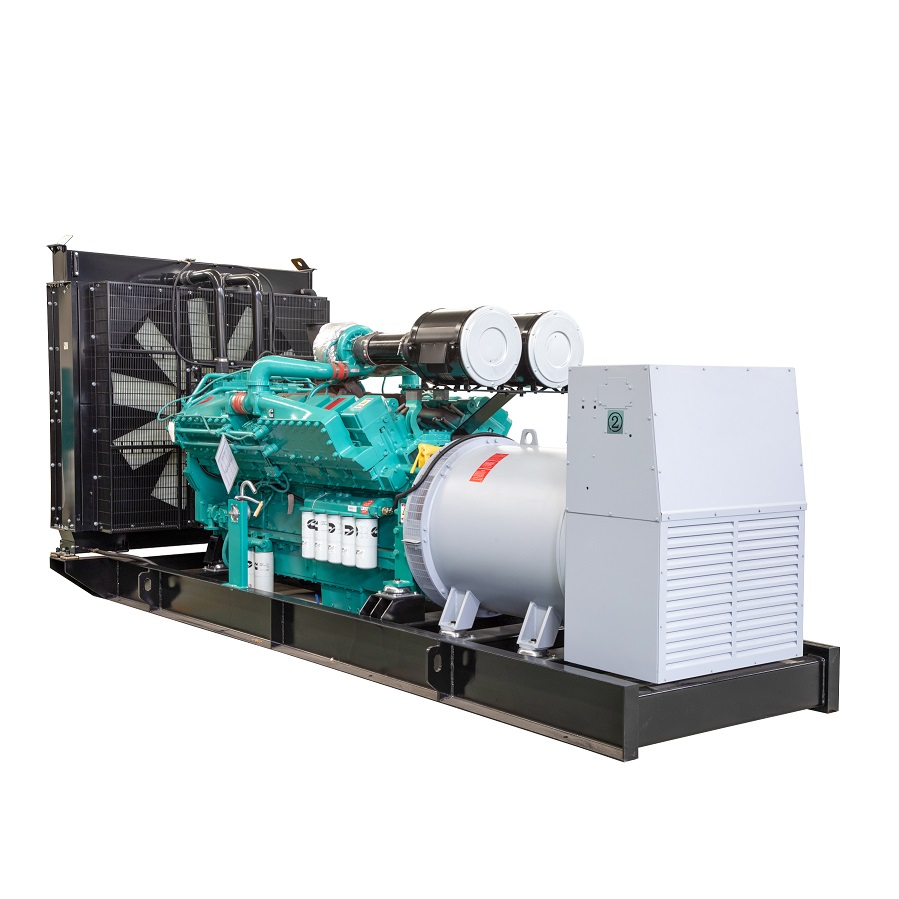

Online Sale 1200 rpm generator diesel 200kw 250kva German Engine
Product Description
Genset Specification |
|
Genset Model |
HF-200GF |
Prime Power(50HZ) |
200KW/250KVA |
Standby Power(50HZ) |
220KW/275KVA |
Frequency/Speed |
50Hz/1500rpm |
Standard Voltage |
230V/400V |
Overall Dimensions |
2500*950*1600 (MM) |
Net Weight |
2280 (KG) |
Phases |
Three phases, four wires |
Engine Specification General Performance |
|
Manufacturer: |
Cummins Engine Co., Ltd. |
Engine Model: |
6ltaa8.39 g2 |
Engine Type: |
4 stroke, V-type, 6-cylinder |
Engine Speed: |
1500 rpm |
Prime Power: |
200KW |
Standby Power: |
220KW |
Governor Type: |
Electric |
Air Intake Way: |
Turbo charged & intercooled (air to air) |
Displacement: |
8.9L |
Cylinder Bore * Stroke: |
114mm × 135mm |
Compression Ratio: |
15.0:1 |
Coolant Capacity Engine Only |
20 Liters |
Alternator data |
|
Engine Model: |
Stamford / Godlike |
Phase |
3 Phase |
Power Factor |
0.8 |
Drip Proof |
IP 22 |
Insulation class |
H |
Voltage regulation |
± 0,5 % |
Altitude |
≤ 1000 m |
Over speed |
2250 min -1 |
Technology
Generator Standard Configuration |
♦ Assembled by Cummins diesel engine and world famous brand alternator ♦ Radiator and fan with safety guard ♦ Automatic control panel and electricity output switch cabinet ♦ Float battery charger and solenoid switch as standard supply scope ♦ Built-in shock pad ♦ Heavy duty steel as base frame and 6-8hrs operation base fuel tank.(suit for 8kva-750kva) ♦ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc. |
