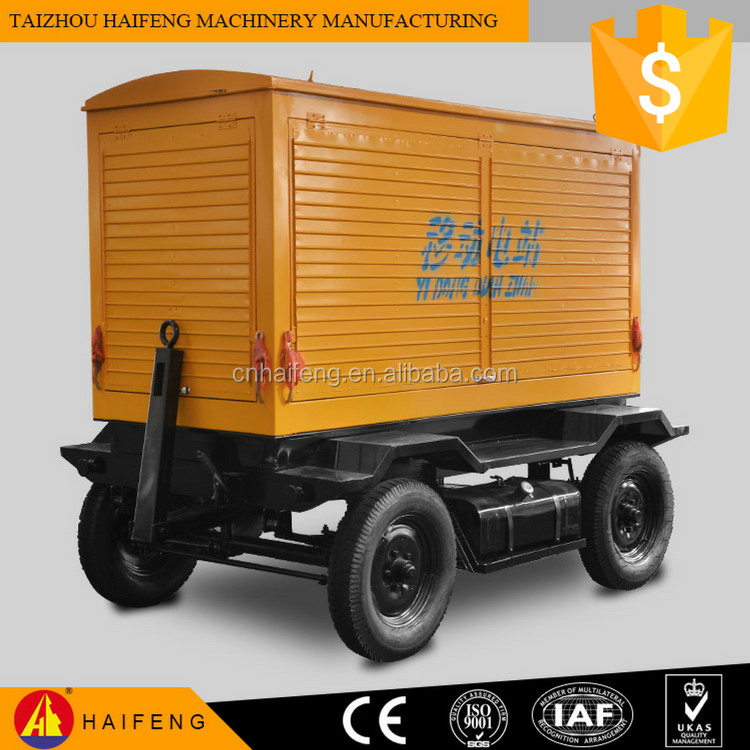

50kw 62kva Loại Di Động ISO Được Phê Duyệt Máy Phát Điện Diesel Đặt Động Cơ Cummins

Genset Specification

Genset Model

HF-50GF

Prime Power(50HZ)

50KW/63KVA

Standby Power(50HZ)

55KW/69KVA

Frequency/Speed

50Hz/1500rpm

Standard Voltage

230V/400V

Overall Dimensions

1700*650*1250 (MM)

Net Weight

800 (KG)

Phases

Three phases, four wires

Engine Specification General Performance

Manufacturer:

Cummins Engine Co., Ltd.

Engine Model:

4B3.9G2

Engine Type:

4 stroke, V-type, 6-cylinder

Engine Speed:

1500 rpm

Prime Power:

50KW

Standby Power:

55KW

Governor Type:

Electric

Air Intake Way:

Turbo charged & intercooled (air to air)

Displacement:

3.9L

Cylinder Bore * Stroke:

102mm × 120mm

Compression Ratio:

15.0:1

Coolant Capacity Engine Only

20 Liters

Alternator data

Engine Model:

Stamford / Godlike

Phase

3 Phase

Power Factor

0.8

Drip Proof

IP 22

Insulation class

H

Voltage regulation

± 0,5 %

Altitude

≤ 1000 m

Over speed

2250 min -1

Generator Standard Configuration

♦ Assembled by Cummins diesel engine and world famous brand alternator

♦ Radiator and fan with safety guard

♦ Automatic control panel and electricity output switch cabinet

♦ Float battery charger and solenoid switch as standard supply scope

♦ Built-in shock pad

♦ Heavy duty steel as base frame and 6-8hrs operation base fuel tank.(suit for 8kva-750kva)

♦ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.

Our Commitment

♦ Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.

♦ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001 Environmental Management System.

♦ All products are CE-certified.

♦ All products have passed rigorous factory test to ensure high quality.

♦ Product warranty terms are strictly enforced.

♦ High-efficiency assembly and production lines ensure on-time delivery.

♦ Regular and irregular technical training are provided all year round.

♦ 24/7/365 Customer Service Center provides fast and effective responses customers
