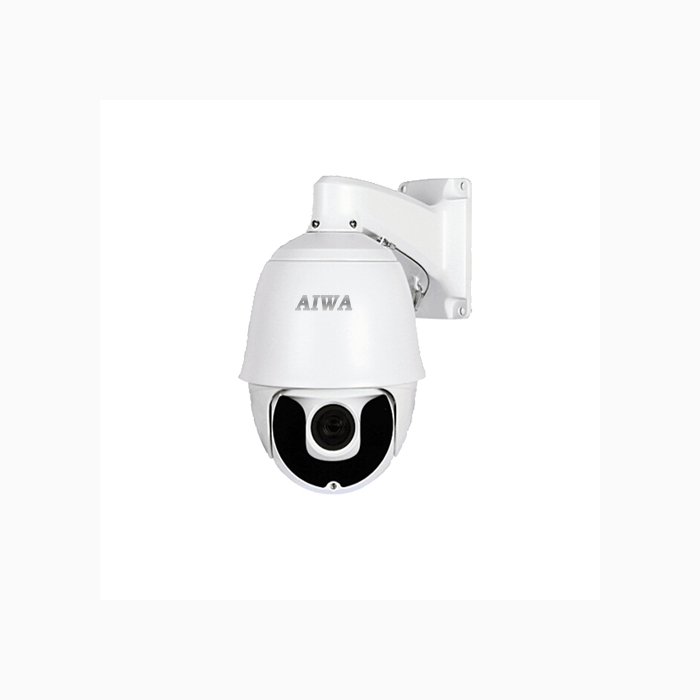

1080P 7 inch Medium speed dome camera
1) 18X Optical Zoom (f=5.35mm-96.3mm)
2) Total Metal housing, IP66
3) Support external POE(optional)
4) ONVIF,Support P2P function
5) Support H.265+/ H.265/H.264/M-JPEG compression
|
Model No.
|
AW-PT08AIP2A-18X
|
|
Camera
|
|
DSP
|
HI3516C
|
|
Sensor
|
1/2.9" 2MP SONY322
|
|
Output resolution
|
1920x1080P
|
|
Lens
|
18X f=5.35mm-96.3mm
|
|
D/N
|
IR-CUT
|
|
BLC
|
Support
|
|
AGC
|
Auto/manual
|
|
WB
|
Auto/manual/indoor/outdoor
|
| WDR |
>150dB
|
|
Network
|
|
Communications Protocol
|
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
|
|
Software Control
|
IE, CMS, Management Platform
|
|
Video compression
|
H.265+/ H.265/H.264/M-JPEG compression |
|
Mobile View(optional)
|
Android iPhone
|
|
PTZ
|
|
Rotation Range
|
Pan:0º~360º , Tilt:-0º~90º
|
|
Rotation Speed
|
Pan:0~60°/s , Tilt:0~45º/s
|
|
Preset Points
|
220pcs presets（dwell time 01-60s interval available）
|
|
Guard Tours
|
3 groups( Max.16 points, dwell time user selectable)
|
|
AB scan range
|
Any point in Pan range: 0º~200º
|
|
AB scan speed
|
1-9 grades
|
|
Night Visioin
|
|
LEDs
|
8 PCS Array IR LED +2PCS Laser LED
|
|
IR distance
|
120M
|
|
Auto Control IR LED
|
PWM
|
|
Support ambient light detection
|
IR illumination on 1-9 grades selectable
|
|
Interface
|
|
Audio
|
/
|
|
Alarm
|
/
|
|
General
|
|
Operation menu
|
English
|
|
Operating temperature
|
Outdoor: -40℃~+60℃
|
|
Humidity
|
≤95% Non Condensing
|
|
Consumption
|
≤15W
|
|
Lightning Protection
|
Transient voltage 6000V
|
|
Power Supply
|
DC12V±10%
|
|
Weight
|
7KG
|
