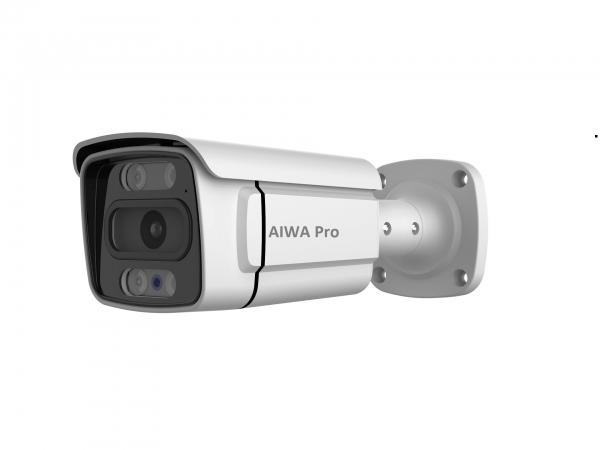

| Model |
AW-B29Q5MP |
| Camera AIWA Pro |
| Image Sensor |
1/2.8 type Sony image sensor |
| Effective Pixels |
Approx. 5.1 megapixels |
| Minimum Illumination |
Color: 0.0001 lx, BW: 0.04 lx
(F1.3, Maximum shutter: Off (1/30s), AGC : 11)
BW: 0 lx
(F1.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)
Color: 0.0044 lx, BW: 0.003 lx
(F1.3, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance |
AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
| Shutter Speed |
1/30 Fix to 1/10000 Fix |
| Intelligent Auto |
On/ Off |
| Super Dynamic |
On/ Off, the level can be set in the range of 0 to 31 |
| Dynamic Range |
Max 150 dB (Super Dynamic: On, Level: 30 or more, 15 fps) |
| Adaptive Black Stretch |
The level can be set in the range of 0 to 255. |
| Back light compensation/ High light compensation |
BLC (Back light compensation)/ HLC (High light compensation)/ Off
The level can be set in the range of 0 to 31.
(only when Super dynamic/ Intelligent Auto: Off) |
| Fog compensation |
On/ Off, The level can be set in the range of 0 to 8
(only when Intelligent auto/ auto contrast adjust: Off) |
| Maximum gain |
The level can be set in the range of 0 to 11. |
| Color/BW (ICR) |
Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light |
High/ Middle/ Low/ Off, Maximum irradiation distance: 30 m {Approx. 98 ft} |
| Digital Noise Reduction |
The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) |
On/ Off, 4 areas available |
| Intelligent VMD (i-VMD) |
Type 6 *Bundled License |
| Privacy Zone |
On/ Off (up to 8 zones available) |
| Image rotation |
0°(Off)/ 90°/ 180°/ 270°, 90° and 270° are valid only in the 16:9 mode |
| Camera Title (OSD) |
On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Lens :3.6mm,2.8mm |
| Adjusting Angle |
| Adjusting Angle |
Horizontal (PAN) angle: -240 to +120°
Vertical (TILT) angle: -30 to +85°
Azimuth (YAW) angle : ±100° |
| Browser GUI |
| Camera Control |
Brightness, AUX On/ Off |
| Audio |
Mic (Line) Input: On/ Off
Volume adjustment: Low/ Middle/ High
Audio Output: On/ Off
Volume adjustment: Low/ Middle/ High |
| GUI/ Setup Menu Language |
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network |
| Network IF |
10Base-T / 100Base-TX, RJ45 connector |
Resolution H.265 Ultra/
H.265/ H.264
JPEG (MJPEG) |
- 16 : 9 mode
3072 x 1728/ 2560 x 1440/ 1920 x 1080/ 1280 x 720/ 640 x 360/ 320 x 180
- 4 : 3 mode
3072 x 2304/ 2560 x 1920/ 1280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA |
| H.265 Ultra/H.265/H.264 |
- Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast/ Multicast |
| JPEG |
Image Quality: 10 steps |
| Smart Coding |
GOP (Group of pictures) control :
On (Frame rate control)/ On (Advanced)/ On (Mid)/ On (Low)/ Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
Auto VIQS: On/ Off |
| Audio Compression |
G.726 (ADPCM): 16 kbps/ 32 kbps
G.711: 64 kbps
AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
| Audio transmission mode |
Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Supported Protocol |
- IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users |
Up to 20 users (Depends on network conditions) |
|
|
| Mobile Terminal Compatibility |
iPad, iPhone, AndroidTM mobile terminals |
| Alarm |
| Alarm Source |
3 terminals input, VMD alarm, Command alarm |
| Input/ Output |
| Monitor Output (for adjustment) |
VBS: 1.0 V [p-p]/ 75 Ω, composite, ø3.5 mm mini jack
An NTSC or PAL signal can be outputted from camera |
| Audio input |
ø3.5 mm stereo mini jack |
| For microphone input |
Recommended applicable microphone: Plug-in power type
(Sensitivity of microphone: -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance: Approx. 2 kΩ (unbalanced)
Supply voltage: 2.5 V ±0.5 V |
| For line input |
Input level: Approx. –10 dBV |
| Audio Output |
ø3.5 mm stereo mini jack (monaural output)
Output impedance: Approx. 600 Ω (unbalanced)
Output level: –20 dBV |
| External I/O Terminals |
ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| General |
| Safety |
UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC |
FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption |
DC power supply: DC12 V 720 mA/ Approx. 8.7 W
PoE (IEEE802.3af compliant) Device: DC48 V 190 mA/ Approx. 9.1 W (Class 0 device |
| Ambient Operating Temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
| Ambient Operating Humidity |
10 to 90 % (no condensation) |
| Shock Resistance |
IK10 (IEC 62262) |
Dimensions
*When using base bracket |
Size: 300(W) x 90(H) x 95(D)mm
Dome radius 41.5 mm {1-5/8 inches} |
Mass
*When using base bracket |
Approx. 1150g |
| Finish |
Main body: Polycarbonate resin Sail white
Dome cover: Polycarbonate resin Clear |
